A look at the ACS software
Follow a calibration from setup to certificate. Click any screenshot for a larger view.
Step 1
Setup
Enter customers, audiometers and your measurement equipment, then tailor the tests.

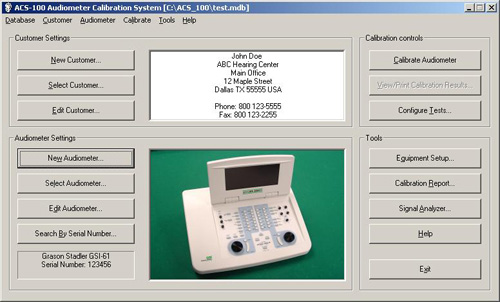

Main application window
The selected customer information is conveniently shown along with an image of the selected audiometer. The right side buttons are where you configure the tests and start the calibration.

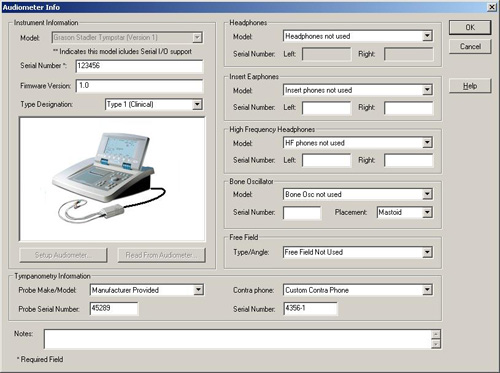

Audiometer information
Where you enter the audiometer information: select the audiometer model and specify the transducers.

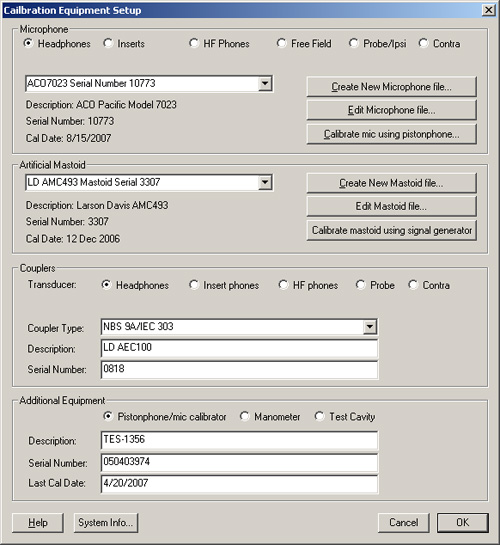

Equipment setup
Specify your microphone, coupler and artificial mastoid parameters. From here you can also calibrate your microphone using a mic calibrator or pistonphone.

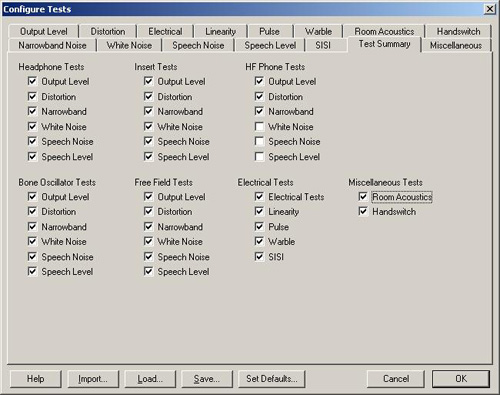

Test configuration
Customize each and every test point. The system contains defaults for all supported audiometers, and you can save and load entire test configurations from disk.

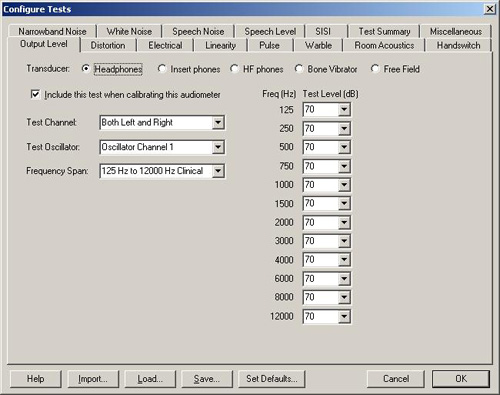

Output level test options
Set the individual hearing test levels for each frequency as needed, as well as the channels and frequency span to test.

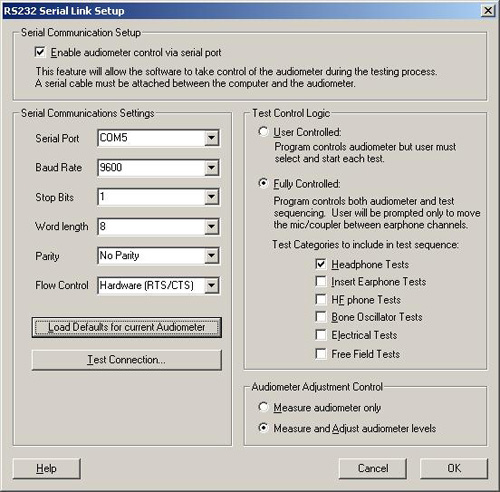

Serial control
Shown for all audiometers the ACS can control via an RS232 serial link (or USB in some cases).
Step 2
Testing
Run the calibration with clear prompts, live measurements and instant pass/fail.

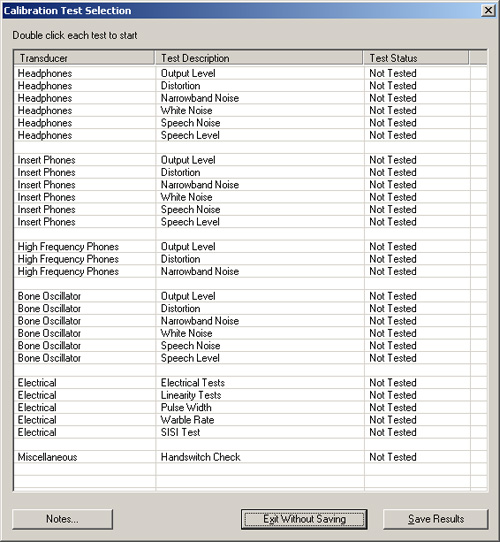

Calibration control panel
The main calibration control panel for type 1 or 2 audiometers.

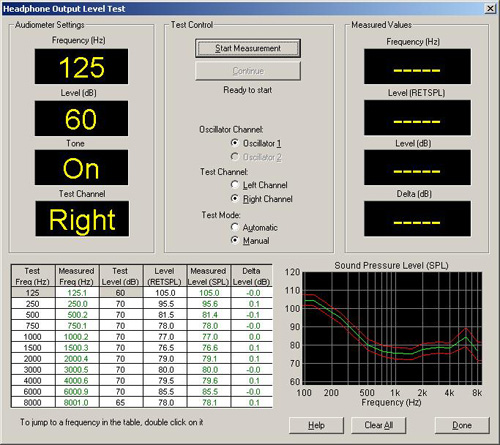

Output level test
Left side indicators prompt you to set frequency, level and channel; right side indicators show measured values, target level and difference. Out of spec values are shown in red.

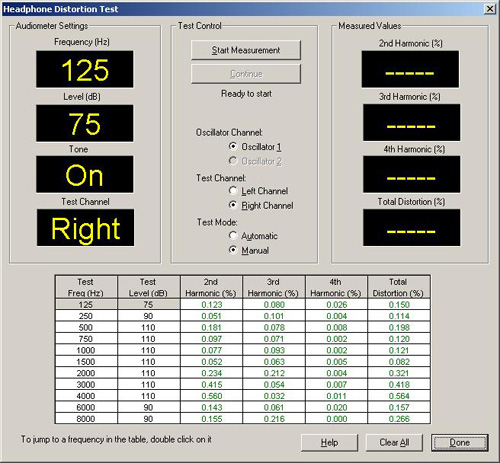

Distortion test
The distortion test screen.

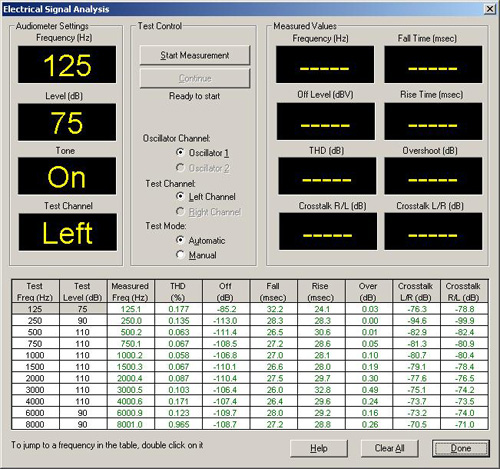

Electrical test
A battery of measurements including rise, fall and overshoot, performed using a resistive load in place of the transducer. All load switching is automatic.

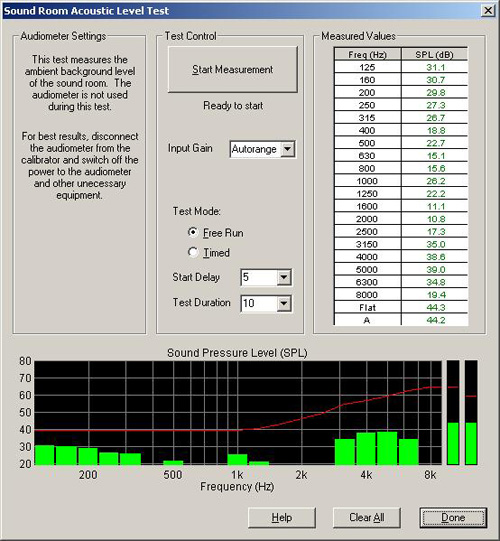

Room acoustic test
Set a start delay and test duration so you can exit the room during the measurement.

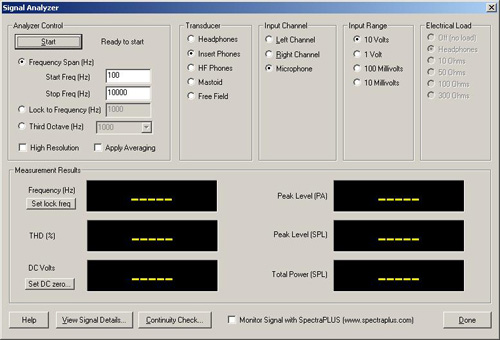

Signal analyzer utility
Make manual measurements: SPL levels, frequency, THD, DC levels and force levels. Real time spectrum graphing is available with the optional SpectraPLUS FFT package.
Step 3
Results & certificates
Review results, compare against previous calibrations and print branded certificates.

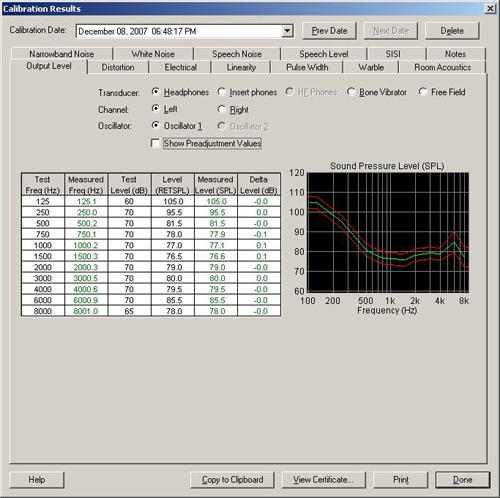

View test results
Tabs select the test and radio buttons select the transducer. “Show Preadjustment Values” shows values before adjustment. Page through previous calibrations to spot trends, and copy data to Excel or Word.
Calibration certificate
The first page of the calibration certificate. The logo in the upper right can be customized to show your company logo. Out of spec values are shown in red.
