ACS 100 SA3
Clinical audiometer and tympanometry calibration — laboratory-grade accuracy for hearing clinics and medical centers.
Get a quoteACS SA3 Audiometer Calibration System
Other systems measure the audiometer. The ACS runs it.

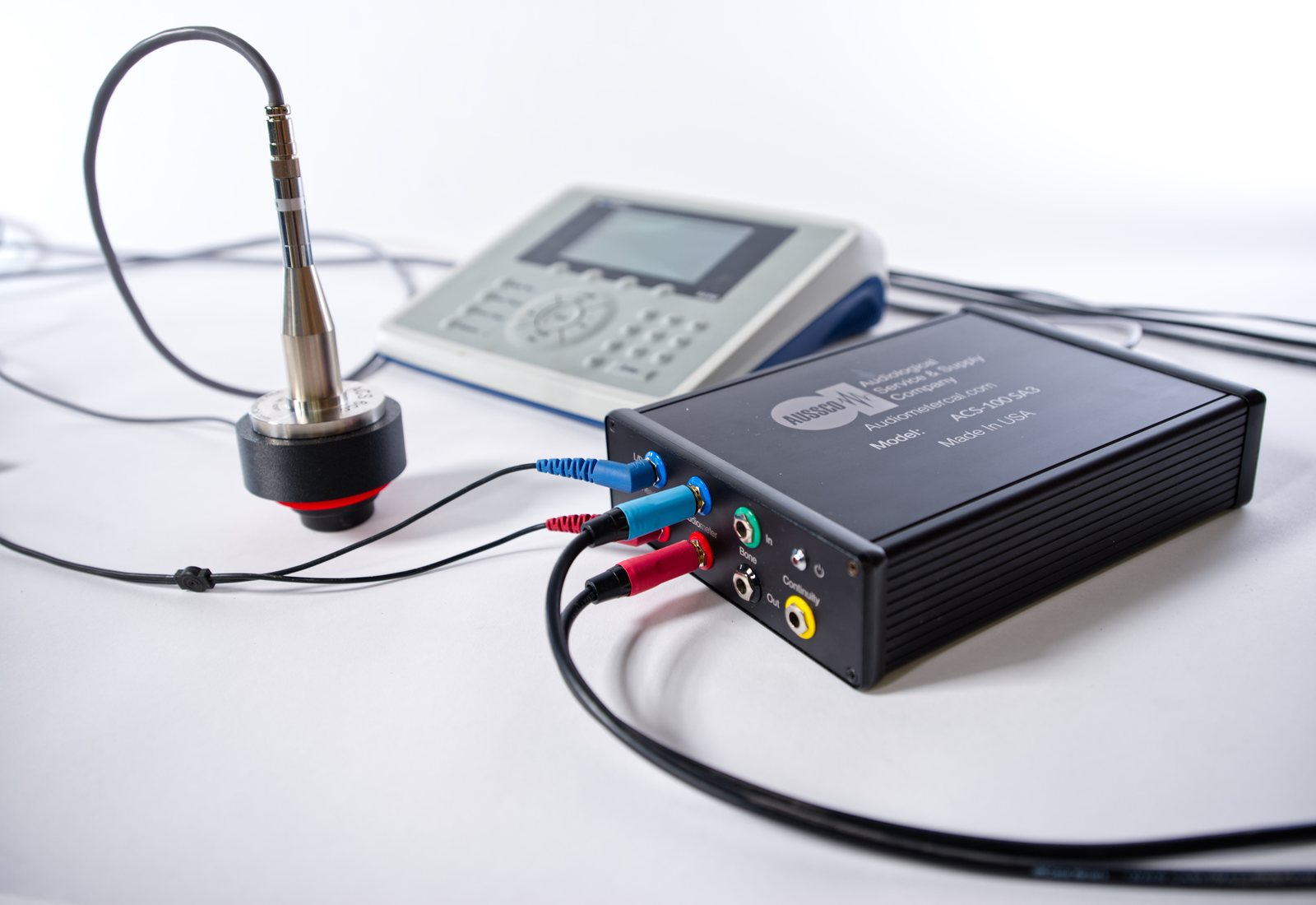

The ACS connects to the audiometer, sets every test point, takes the measurement and adjusts it to ANSI S3.6 and IEC 60645 — an exhaustive calibration in under 10 minutes. It calibrates tympanometers, ABR and OAE instruments too.
Download the product brochure (PDF)
Automatic control of 73 audiometer models
Under 10 minExhaustive calibration (longer for clinical models)
125Directly supported instrument models
73Models with automatic serial / USB control
Since 1955AUSSCO roots in the hearing industry
Built-in standards
- ANSI S3.6
- IEC 60645
- ISO 389
- ANSI S3.39
- ANSI S3.31
- OSHA
- Factory calibration at audiometer manufacturers
- Biomedical facilities
- Sold and supported internationally
How it works
Select the instrument. The ACS does the rest.
-
Select the instrument
Pick the make and model and the ACS sets the headphone type and impedance and loads the right calibration routine. Not listed? Set it up as a User Defined audiometer.
-
Start it and walk away

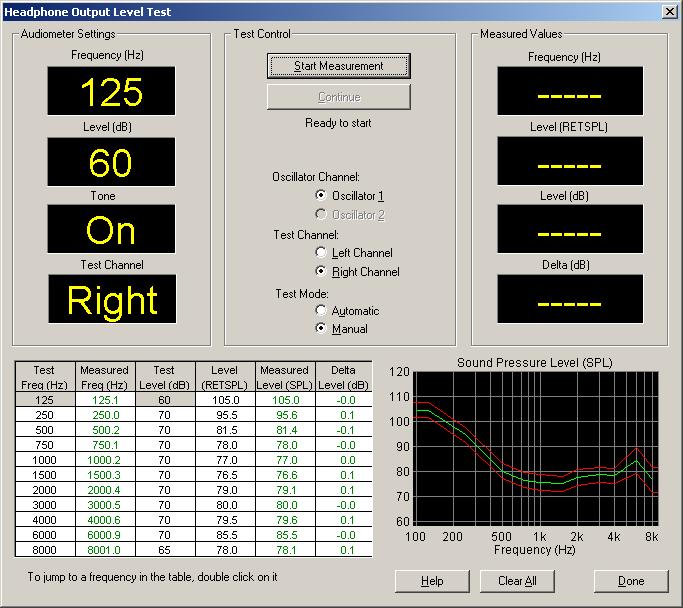

Through the audiometer’s serial or USB port the ACS steps through every test point, measures and adjusts to the standard, recording “pre-adjustment” values as it goes. You only step in to change transducers — and passing and failing readings each have their own tone, so you can follow along from across the room.
-
Print the certificate
A customized calibration report with color graphs and your company logo, ready for the customer.
73 of the 125 supported models run fully automatically. The rest are calibrated with the ACS prompting the technician at each step.
See the models it controls
System configurations
One system for screening programs through production labs.
ACS 200 SA3
Dual-microphone measurements, enhanced headphone verification and flexible instrumentation support.
Get a quoteACS 600 SA3
High-throughput laboratory, production and service environments that need multiple simultaneous measurement points.
Get a quoteACS 102 SA3
Screening audiometer calibration with standard headphone measurement — a practical choice for screening programs.
Get a quoteEvery ACS calibrates
- Headphones & inserts
- HF phones
- Bone oscillators
- Tympanometers
- ABR
- OAE

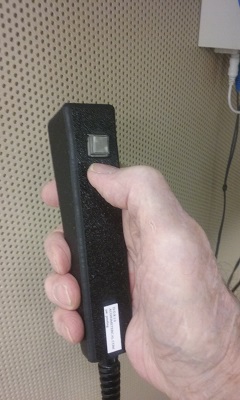

- Handswitches
- Sound rooms (1/3 octave)

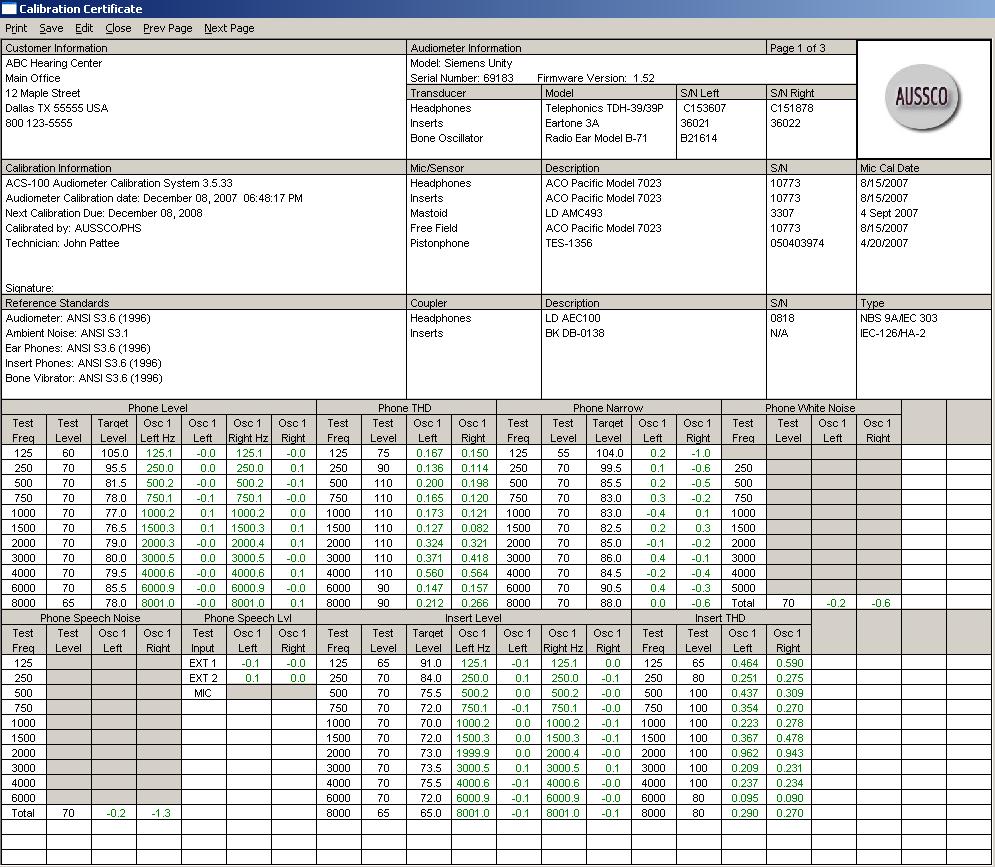

Reporting
Calibration certificates your customers can trust.
Detailed test results are stored in tabular and plot form. The calibration certificate lists all test results, audiometer and transducer serial numbers, microphone, mastoid and coupler details, and calibration standards.
- Your company logo in the upper right corner
- Out of spec values highlighted in red
- Page through previous calibrations to spot trends
- Track customers, audiometers, headphones and leads in the built-in database
Ready to speed up your calibrations?
Get pricing for your configuration, or see the ACS in action.
